How does an aluminum composite panel Improve Building Facades?

An Aluminum Composite panel (ACP) improves building facades by combining a lightweight sandwich structure — two aluminum skins bonded to a mineral or polymer core — with high-performance surface coatings that resist UV degradation, moisture, and fire. This construction reduces structural load while delivering design versatility across colors, textures, and custom dimensions. Whether applied to office towers, hospitals, or transit hubs, ACPs create facades that are visually refined, technically compliant, and cost-efficient over their full service life.

Send Inqiury

Understanding Aluminum Composite Panels and Their Role in Building Facades

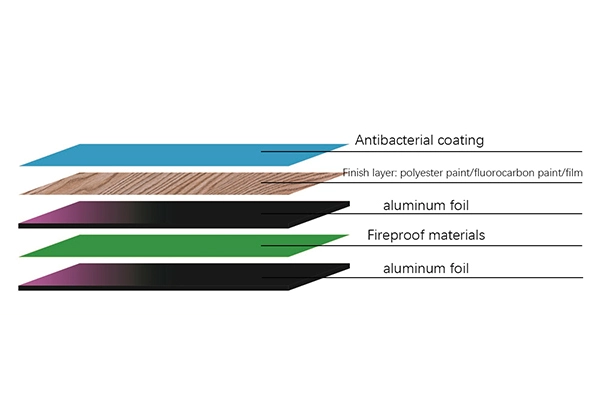

A standard ACP is made up of two aluminium pieces that have already been painted and are firmly attached to a core material. The performance class depends on the core type. Standard polyethylene (PE) cores are good for indoor use, while mineral-filled cores, like those in the A2 Aluminium Composite panel, meet EN 13501-1 ratings for not being flammable (Class A2-s1, d0). The A2 core is made up of more than 90% inorganic material elements. This gets rid of the high-calorie fuel load that starts covering fires on tall buildings.

How the A2 Core Redefines Fire Safety in Cladding

On both sides of YILONG JUZHOU's A2 Aluminium Composite panel is refractory mineral material that is joined between aluminium skins that are 0.1 mm to 0.5 mm thick. The panel can be made in thicknesses of 2 mm, 3 mm, 4 mm, 5 mm, and 6 mm, and it can be made in sizes of 1220 mm, 1500 mm, and 2000 mm. You can change the height to more than 3 meters, which means it can be used for large curtain wall installations and high-bay interior cladding in stadiums, subways, and airports.

Different types of surface treatments, like polyester paint, PET film, PVC film, and PP film, are good for different types of projects and budgets. This range lets buying teams find the best mix between price and performance without sacrificing code compliance.

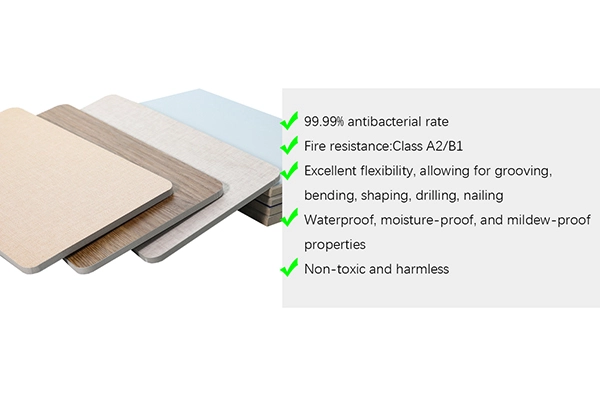

Core Benefits of Aluminum Composite Panels for Building Facades

When procurement managers look at facade materials, they take performance, design range, lifecycle cost, and regulatory compliance all into account at the same time for ACP panels. The A2 Aluminium Composite panel is a good choice for many types of projects because of these main benefits:

• Class A2 fire resistance — The mineral core passes non-combustibility testing, meeting the requirements for high-rise facades, healthcare facilities, and public transit infrastructure where fire codes are non-negotiable.
• Waterproof, moisture-proof, and mildew-resistant — The bonded aluminum skin seals the panel against water infiltration. Hospitals, food processing plants, and pharmaceutical facilities require exactly this kind of hygienic, cleanable wall surface.
• Machinability and formability — The panel accepts drilling, nailing, and bending without cracking. Curved facade sections, column cladding, and radius corners are achievable without custom extrusions or additional fabrication costs.
• Formaldehyde-free, odorless, and radiation-free — The product carries China Environmental Protection Standard Certification, ISO, and CE markings, satisfying green building requirements in tender evaluations and LEED-aligned projects.
• Design versatility — Available in solid colors, woodgrain, marble pattern, metallic finish, and cloth texture, these panels support the architectural language of luxury hotels, conference centers, medical aesthetic clinics, and art galleries without requiring imported stone or bespoke finishes.
• Sturdy and impact-resistant — Unlike ceramic tile or glass, the aluminum skin resists shattering. In high-traffic zones such as train stations, gyms, and shopping malls, this translates into fewer replacement cycles and lower maintenance budgets.

Together, these benefits solve the main problem that buying teams face, which is finding a material that meets all the standards for safety, looks good, and doesn't break the bank. In the lightweight covering area, the A2 panel is one of the few that can't catch fire and can be machined.

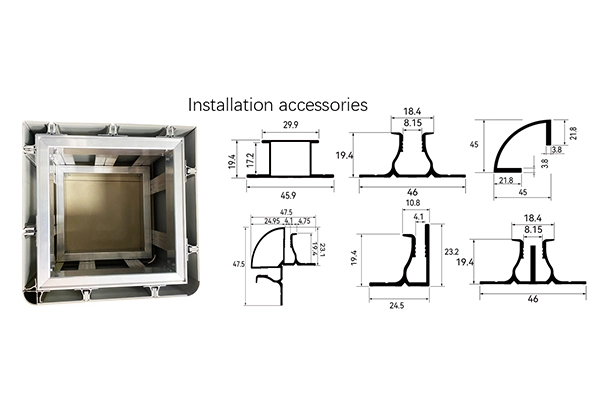

Installation and Maintenance: Ensuring Optimal Facade Performance

If you install a wall cladding system correctly, it will keep its structural stability and good looks for a long time. The lightweight nature of the A2 Aluminium Composite panel makes it easier to install, and the fact that it can be machined means that it can be cut and fitted on-site using common tools.

Key Installation Considerations

A very important issue is thermal growth. When the temperature changes by one degree Celsius, aluminium expands by about 2.4 mm per meter. At panel junctions, 10–15 mm expansion joints must be used to keep the panels from buckling. Fixing methods must allow for this movement, whether they are glued, cassetted, or bonded.

The maintenance is also very easy. The coated surface keeps airborne particles away and doesn't stain easily, so it only needs to be washed with a light soap solution every so often. In healthcare and cleanroom settings, the non-porous aluminium surface supports cleaning procedures without breaking down the panel.

Comparing Aluminum Composite Panels with Alternative Facade Materials

ACPs like ACP panels are often put up against solid aluminium sheets, PVC panels, fibre cement board, and glass curtain walls by people who work in procurement. There are certain trade-offs with each element.

Solid aluminium sheet has about the same fire resistance as other types, but it is much heavier, which makes the structure heavier and increases the cost of installation. Even though PVC panels are cheap, they aren't rigid enough or fire-rated enough for most business walls. Fibre cement is resistant to fire, but it is heavy per square metre, flimsy, and hard to shape into curves. Glass walls look great, but they are expensive to make, have complicated thermal control needs, and are prone to breaking.

The A2 Aluminium Composite panel has a clear place in the market: it doesn't catch fire, is much lighter than solid metal, can be fabricated in a variety of ways, and is priced in a way that most business and public building budgets can afford. This mix of standardisation and flexibility makes specifications a lot easier to understand for procurement teams that are in charge of handling phased construction across multiple buildings.

How to Choose the Right Aluminum Composite Panel Supplier for Your Project

More than just the unit price should be used to judge a supplier. When buying on a big scale or for sale, the following factors are most important:

Certifications back up claims of efficiency. Check for ISO certification, CE marking, and fire test reports that are specific to your country and follow the building codes in that country. Along with ISO and CE, YILONG JUZHOU has the China Environmental Protection Standard Certification. It tests its products for the institutional and commercial markets it serves.

The project's profitability is based on its production potential and lead time. YILONG JUZHOU has two production bases, one in Foshan City, Guangdong Province, and one in Xianyang High-tech Zone, Shaanxi Province. These bases have a total stock of 50,000 m² and a normal production cycle of 3–7 days. Freight ships leave from Shenzhen, Guangzhou, Shanghai, and Qingdao by sea, and Xi'an, Guangzhou, Shenzhen, and Foshan are served by land routes.

Sample and Customization Policy

If a procurement team wants to test a material before placing a large order, YILONG JUZHOU offers free samples that are usually sent out within 3–5 days. OEM and ODM production are both available, and unique sizes, finishes, logos, and package layouts are all possible. All shipments come with a quality guarantee that lasts for three years, and professional services for planning and installation can be requested.

Conclusion

The outside of a building has both practical and symbolic value. The A2 Aluminum Composite panel meets both needs by providing Class A2 fire resistance, resistance to moisture, design freedom, and proven environmental benefits in a format that is lightweight and easy to machine. This type of material can be used inside a hospital, an airport terminal, or a tall commercial building. It is a cost-effective and technically sound solution to problems with facade cladding. The best service life and lowest total ownership cost are achieved by procurement teams that verify suppliers, make sure expansion joints are designed correctly, and make sure surface specifications are right for their environment.

FAQ

1. Does panel thickness affect facade fire performance?

The fire grade is mostly based on the core's makeup, not its thickness. No matter how thick the mineral core panel is—3 mm or 6 mm—it is still marked as A2 and can't catch fire. Rigidity, spanning capacity, and wind load resistance are all affected by thickness. For large-format exterior cladding installations, it is best to use panels that are thicker because they don't bend as much over longer fixing spans.

2. Can these panels be used in both interior and exterior applications?

Yes. YILONG JUZHOU's A2 Aluminium Composite panel is used inside hospitals, hotels, conference centers, gyms, and medical aesthetic centers. It is also used as cladding on the outside of commercial buildings. The type of surface treatment you choose is important. Polyester paint works well inside, while higher-grade coats are needed outside, where they will be exposed to UV light and rain.

3. Is the material recyclable?

Aluminium is one of the building products that can be recycled the most. The mineral core can be taken out of the aluminium skins and put back into the heating cycle. This trait helps with LEED and green building approval needs, which are becoming more important in US business and government buying.

4. What customization options are available?

The panels come in different widths (1220, 1500, and 2000 mm), thicknesses (2, 3, 4, 5, and 6 mm), and lengths that can be fully customised, even up to heights of more than 3 meters. You can choose from basic colours, fabric designs, woodgrains, marble, and metallics.

Partner with YILONG JUZHOU — Trusted A2 Aluminum Composite Panel Manufacturer

The company YILONG JUZHOU offers high-performance Aluminum Composite panel products with dual production bases, ISO and CE approval, and a 3–7 day production wait time. We accept OEM and ODM orders and send out free samples within 3–5 days. We also promise the quality of every package for three years. You can email our technical team at cnyang2000114@gmail.com to get details, samples, or a quote for a large order.

References

1. Aluminum Association. (2022). Aluminum in Building and Construction. The Aluminum Association.

2. European Committee for Standardization. (2018). EN 13501-1: Fire Classification of Construction Products and Building Elements. CEN.

3. National Fire Protection Association. (2021). NFPA 285: Standard Fire Test Method for Evaluation of Fire Propagation Characteristics of Exterior Non-Load-Bearing Wall Assemblies. NFPA.

4. Architectural Aluminum Manufacturers Association. (2020). AAMA 2605: Voluntary Specification for Superior Performing Organic Coatings on Aluminum Extrusions and Panels. AAMA.

5. Construction Specifier. (2023). Comparing Facade Cladding Systems: Performance, Cost, and Sustainability. The Construction Specifier.

6. U.S. Green Building Council. (2023). LEED v4.1 Building Design and Construction Reference Guide. USGBC.
