What are the common issues faced during aluminum panel installation, and how to avoid them?

Working on company construction projects taught me that even excellent building materials may fail if not assembled properly. A2 Aluminum Composite panels include an ignitable mineral core and aluminum skins for fire resistance and durability. However, installation issues like misalignment, scratches, and fit may impair the appearance and function. If you avoid these common issues, your inner wall cladding will last longer. This is crucial in dangerous settings like hospitals, airports, and office buildings.

Understanding Common Installation Issues with A2 Aluminum Composite Panels

To properly put up A2 Aluminum Composite panel flooring, you need to be careful, know a lot about technology, and keep an eye on the weather. Things keep going wrong on projects that cause costs to go up and schedules to slip over the years.

Panel Warping and Dimensional Instability

If panels are improperly kept before assembly or the core material changes temperature, they might move. The thick mineral core of A2 Aluminum Composite panels may develop differently from the metal skins, whether hot or cold. If stacked horizontally without support or left in the sun, they will bow.

Keep panels standing in a temperature- and humidity-controlled environment to prevent this problem. When storing, keep the temperature between 15°C and 25°C and the humidity below 70%. Check each panel's flatness with a straightedge before assembly. Any change above 2 mm per metre must be reported and corrected.

Alignment Errors and Joint Irregularities

Installation issues like misalignment are visible. Unlevel holes result from misaligned walls. The building looks poor and might leak. Poor planning, readings, or foundational work causes this difficulty.

The foundation must be level and sound before alignment. Mark points throughout the work area using laser levels and chalk lines. For lengths and sizes that may be modified, like the 1220mm, 1500mm, or 2000mm possibilities that come with excellent panels, utilize parts that have been cut to your specifications. Connect the panels without assembly. You may align and place them evenly over the wall this way.

Surface Damage During Handling

Scratches, dents, and safety film cover many surfaces. Peeling the protective PE film off the A2 Aluminum Composite panel pieces requires attention. The film will spread sticky glue if left on too long, particularly near UV radiation. Removal will be difficult. If you remove it too quickly, the surface may be damaged.

Use clean gloves and don't drag them over rough surfaces while touching displays. Immediately remove the protective film before or after installation if safe. Avoid harsh cleansers that might harm polyester paint or PET film if there is adhesive. Instead, use the included mild detergent.

Inadequate Fastening and Structural Support

Bad repair reduces safety and durability. When screws are overly tight, panel sides might fracture. Loose screws cause the panel to shift, making noise and failing. The dense, mineral-rich core of A2 Aluminum Composite panels weighs around 7-8 kg/m² for a 4mm width. This exceeds polyethylene cores. A robust structure is needed to support this weight.

Panels are 2mm, 3mm, 4mm, 5mm, or 6mm thick. Use these dimensions to determine their weight capacity. Space screws should be 300–400 mm apart inside, per technical requirements. Galvanic rust occurs when different metals are mixed. This may be prevented using stainless steel screws and nuts.

Construction teams and buyers may use this knowledge to design fireproof, watertight, and environmentally friendly wall systems. Next, determine how fire safety standards and installation impact each other.

Fire Safety Challenges and How to Ensure Compliance with A2 Fire Ratings

Building occupants are responsible for fire safety as well as legal compliance. According to EN 13501-1, A2 ACP board materials with over 90% man-made minerals are classified as non-combustible. However, laboratory classifications do not guarantee real-world performance if incompatible or flammable materials are used during installation.

Common Installation Errors That Compromise Fire Resistance

I witnessed post-installation testing that indicated the panels fulfilled A2 requirements but failed all fire tests. Who did? Certain sealants, glues, and insulations don't mix. Fire-prone foam tapes or PE sealants reduce insulation's fire resistance.

Another error is insufficient hole walls. If panels cover openings in the wall without fire stops, flames may spread swiftly. In a fire, this stack effect converts straight lines into chimneys.

Best Practices for Fire-Compliant Installation

Seals, glue, screws, padding, and other extras should be designated as non-combustible or fire-rated. Keep a note of material approvals as you acquire them to show insurance companies and building inspectors you followed the laws.

Fire rules in your location require whole barriers at each floor and surrounding openings. Install mineral wool insulation behind panels instead of foam. Check for holes and steady fire-stopping using thermal imaging after setup.

When working in healthcare, government, or transportation facilities, it's preferable to have lab tests to prove compliance. ISO, CE, and China Environmental Protection Standard Certification demonstrate that a corporation cares about quality and safety. This information helps you compare bids based on technical specifications and work claims.

Technical Specifications and Installation Guidelines for A2 Aluminum Composite Panels

Once you know about the technical aspects, installation stops being a guessing game and turns into a step-by-step process. A2 Aluminum Composite panel represents a mix of material science and real building needs. Good projects hit a sweet spot between the two.

Critical Technical Parameters

Panel thickness affects strength, weight, and use. Interior ceilings with less weight benefit from thinner panels (2–3 mm). Walls in companies, restaurants, and conference rooms are usually made of 4mm middle-priced panels. Stadiums, rail stations, and airports have heavy foot traffic; 5–6 mm ones endure longer.

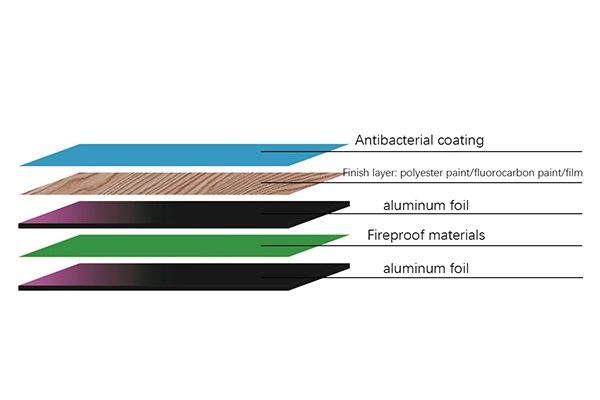

Metal skin is 0.1–0.5 mm thick. Thick skins prevent damage and resist fastener pull-through, but they cost more. A hard core of mineral hydroxides is divided in half between the skins. The minerals don't melt at hot or cold temperatures and prevent water and mould growth.

Surface treatments include basic colours for simple designs, timber patterns for dining rooms, marble or metallic patterns for high-end office spaces, and textile textures to suppress noise. Polyester paint, PET film, PVC film, and PP film-covered finishes need distinct care and maintenance to endure.

Step-by-Step Installation Process

Getting the space ready affects job quality. Check the foundation sides for levelness, water intrusion, and building stability. Before installing the panels, repair any foundation concerns. Putting on fractured bases causes surface issues.

Making a reference grid requires precise measurement instruments. Panel joints should be 10–15 mm broad for indoor applications. Mark panel placement. This element of planning prevents errors from accumulating until gaps or corners appear.

Start building the wall at a corner or other location to act as a guide, then go straight across it. Avoid panel bowing. Instead, start screwing in the middle and work out. Adjust and set up torque tools per the manufacturer's directions. Avoid harming objects by tightening them too much or too little with this tiny investment.

You may detect difficulties before you accomplish large sections of the task by checking the queue. Check joints every three to five panels for levelness, straightness and uniformity. Small modifications early on will prevent major changes later.

Cover joints using materials that don't melt or split when wet and work well with others. Hurried people fail at joint-sealed initiatives. Joints must be maintained to prevent air and water leaks. They should function as designed systems, not panels.

Quality inspections continue after the final panel is installed. Final inspection: clean surface, straight joints, easy-to-see screws, and overall appearance. Take photos of the completed project to show the insurance company that the work was done as promised.

In hospital renovations I supervised, the builder rigorously maintained these quality checks throughout the process. As a result, there were no issues with the wall coverings, and the facility manager noted that cleaning was simple—critical in germ-prone environments. The project succeeded because the A2 metal Aluminum Composite panel installation was carefully planned and executed rather than rushed.

Maintenance Tips to Extend the Lifespan of Installed A2 Aluminum Composite Panels

Even the most durable construction materials require maintenance to survive decades. A2 Aluminum Composite panels are superior in weatherproofing to others. However, things should be fixed before they worsen.

Cleaning some items will extend their lifespan. Use pH-neutral cleansers and non-irritating pads or cloths for frequent cleaning. Surface coatings may be damaged by harsh chemicals, scrubbers, and high-pressure water. Quiet, formaldehyde-free panels. They also feature protective coatings that withstand ordinary cleaning. Rough cleaning can wear down panels more quickly than expected.

In the first year, check the system every three months. Repeat every six months until stable. Look for dampness, panels darkening, sealant fading, and bolts loosening. If detected early, they may be rectified swiftly without much labour.

The environment determines repair frequency. Salt spray causes coastal structures to rust, so they require additional washing. Air contaminants that attach to soil accumulate more quickly in cities. Factory panels may receive chemical vapours or particles, which must be cleaned.

Good asset management involves facility managers following established maintenance plans to maintain asset value. This document also enables guarantee claims in case of problems. When corporations provide three-year quality warranties, they want the items to be maintained. Don't do that, and the guarantee is invalid, no matter how amazing the goods.

The parts may be altered later since they won't shatter when drilled, nailed, or bent. When rooms are expanded or rearranged, existing walls may be relocated instead of discarded. Environmentally friendly and cost-effective.

Procurement Considerations and Partnering with Certified A2 Aluminum Composite Panel Suppliers

What you choose for a source is just as important as what you choose for the goods themselves. How reliable the suppliers were, how good the expert help was, and how fast the supply chain reacted have all made the difference between success and failure in projects.

Evaluating Supplier Credentials

The rules say that you will follow them and that you can do something. Keep an eye out for businesses that have ISO quality control marks, CE marks for European markets, and proof that they follow environmental rules. When a supplier has more than one production site, it shows that they are big and stable, which is important for projects that need regular supplies at different stages.

Production skills are important for big projects. You can get what you need quickly from a seller with a 50,000m² store and production times of 3–7 days. Having plants in Shaanxi and Guangdong, and other places around the world, helps with logistics and makes it less likely that problems will happen in other parts of the world.

Practical Ordering Considerations

Solution providers are different from regular sellers because they can make things to fit your needs. With OEM or ODM services, designers can easily make their building dreams come true. They can choose exact lengths that aren't standard (especially for heights over 3 meters), colours like solid, woodgrain, marble, shiny, and cloth patterns.

It's easier to choose materials when you look at samples. When sellers give free samples within three to five days, it shows that they are confident in their products and value the buying process. You can see things like colour consistency, surface roughness, and edge quality that can't be seen in specifications alone.

When you plan ahead, you don't fall behind on your schedule. You can plan a realistic project if you know when suppliers produce, how they handle logistics through different seaports (Shenzhen, Guangzhou, Shanghai, Qingdao), and land transport hubs (Xi'an, Guangzhou, Shenzhen, Foshan). It's best for suppliers to respond to questions within 24 hours.

People who buy from businesses should give YILONG JUZHOU, which makes A2 Aluminum Composite panel, the most attention. The business is operationally developed because it has two production sites, a research and development center, and has worked in markets in more than 30 countries. People know their products are good because they've been tested and proven to work in tough places like hospitals, drug companies, food processing plants, and airports. For big projects to get the help they need, they need a quality warranty that lasts for three years and professional planning and installation services. You can lower your risk and get more for your money when you buy things from well-known suppliers that affect the building's safety, the comfort of its users, and its long-term running costs.

Conclusion

Putting up an A2 Aluminum Composite panel correctly affects how well they look, how long they last, and how safe they are in case of fire. To stay away from common issues, you should understand how the materials work, follow the ordered steps for fitting, and keep the finished parts in good shape as directed by the maker. Because of its technical features, like being able to change sizes, having widths between 2 and 6 mm, and having different surface finishes, it can be used in almost any business setting. Taking the right steps to treat the panels properly, position them correctly, connect them correctly, and use extra materials that are safe around fire makes the panels work better in the real world. The key to building projects that meet building codes and design goals is to work with skilled providers who can give technical help, quality guarantees, and reliable transportation.

Frequently Asked Questions

1. What distinguishes A2 fire rating from standard aluminum composite panels?

Panels made of regular plastic can start fires, but panels with the A2 rating are made of materials that are over 90% non-flammable. The standards for this mixture are set by EN 13501-1 Class A2-s1, d0. This means that it can be used officially in controlled places like hospitals and transit hubs where fire safety is very important.

2. Can installation errors reduce the fire rating of certified A2 panels?

Even if the panels themselves meet A2 standards, the whole system may not be as fire-resistant if you use seals, glues, or insulation materials that can catch fire during installation. To keep the wall system's fire-resistant structure, always choose extra materials that won't catch fire and install the right hollow barriers.

3. What panel thickness should I specify for hospital interior walls?

A 4 mm wall width is good for most internal uses in healthcare because it is strong, doesn't break easily, and blocks out noise. 5–6 mm plates might be best in places where a lot of people walk or where tools will be used. Though the thicknesses vary, the antibacterial and water-resistant properties stay the same, so you can pick the one that best fits your needs.

Partner with YILONG JUZHOU for Reliable A2 Aluminum Composite Panel Supply

They need more than just good tools to finish their projects. They also need to have good ties with their providers based on skills and quick service. For decades, YILONG JUZHOU has been studying new materials. It has factories in two important provinces of Guangdong and Shaanxi. These A2 Aluminum Composite panel options have been approved by ISO and CE to meet high standards around the world. They also let you make changes that are needed for big business projects. Within 24 hours, we answer questions and send out sample orders. This way, you can decide what to buy without having to wait for the job to be finished. Our technical advice services can help you turn performance standards into the best guidelines for building materials that are used in hospitals, business parks, or transportation hubs. Get in touch with A2 Aluminum Composite panel suppliers at cnyang2000114@gmail.com to talk about your project needs with people who want to see you succeed.

References

1. Smith, J.R. & Thompson, M.L. (2021). Fire Safety Engineering for Modern Building Facades: Materials and Installation Practices. International Construction Standards Institute.

2. Chen, W. & Rodriguez, A. (2020). "Quality Control Protocols for Aluminum Composite Panel Installation in Commercial Construction," Journal of Building Envelope Systems, Vol. 45, Issue 3, pp. 187-204.

3. European Committee for Standardization (2019). EN 13501-1: Fire Classification of Construction Products and Building Elements - Part 1: Classification Using Data from Reaction to Fire Tests. CEN Technical Committee.

4. Patterson, D.K. (2022). Architectural Cladding Systems: Specification, Installation, and Long-Term Performance. Construction Materials Publishing Group.

5. International Code Council (2021). International Building Code Chapter 14: Exterior Walls and Fire-Resistant Construction Requirements. ICC Publications.

6. Zhang, L., Kumar, S., & Williams, P. (2020). "Comparative Analysis of Mineral-Core Composite Panels in High-Rise Construction: Installation Challenges and Solutions," Building Science Quarterly, Vol. 38, No. 2, pp. 112-129.
