Exterior wall ACP panel Installation: A Professional Guide

Building an outside wall. Getting the exterior wall ACP panel right is one of the most critical decisions a procurement manager or project engineer can make. Aluminium composite panels are a cladding system that has 2 aluminium skins bonded to a fire-resistant mineral core. This gives a balance between structural strength, thermal performance, and visual appeal. Installed with precision, from sub-frame alignment to joint sealing, these panels can preserve a building envelope for decades. This guide takes procurement professionals and installers through each essential stage.

Send Inquiry

Understanding Exterior Wall ACP Panels: Composition, Benefits, and Applicability

What Makes Up an ACP Panel?

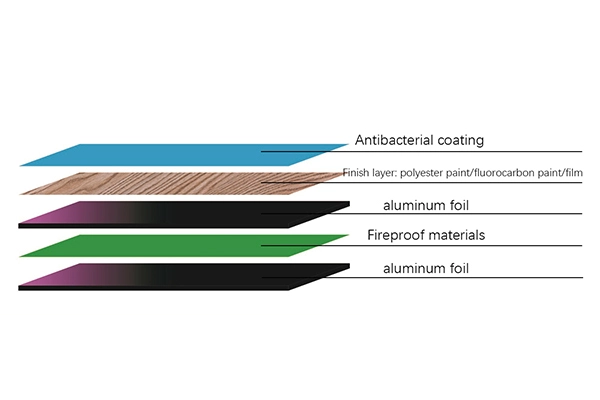

An aluminium composite panel is composed of two aluminium alloy skins, usually 0.1 mm to 0.5 mm thick, put together under high pressure. The skins are then bonded to a core of refractory material. The top layer is finished with a polyester paint that does not break down in UV light, resists industrial contaminants, and is water-resistant. The panels are available in thicknesses of 2, 3, 4, 5, and 6 mm and widths of 1220, 1500, or 2000 mm and are suitable for many different types of facades. The length can be changed to any length you like. Any size over 3 metres can be manufactured on order.

Why ACP Outperforms Traditional Cladding?

When procurement teams compare aluminum composite panels to brick veneer or fiber cement boards, they always find that the former performs better in all three dimensions. The panels are about 30–50% lighter than solid metal sheets, which means that foundations and curtain wall frames don't have to support as much weight. The composite construction makes big parts of the facade flatter, which stops the visible wavering that is called "oil-canning" in the industry. YILONG JUZHOU panels have fire resistance ratings of Class A2 and B1, which means they meet the strict rules used in commercial construction in the U.S., such as NFPA 285, which controls the exterior wall assemblies of high-rise buildings.

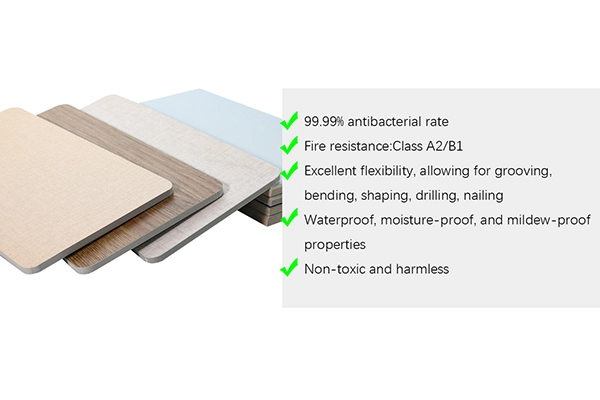

These panels are good for tough projects because they have the following main performance traits:

• Class A2/B1 fireproof rating: The mineral-filled core does not allow the vertical spread of flames across the facade, making it ideal for hospitals, schools, office complexes, and transit hubs like airports and train stations.
• Waterproof, moisture-proof and mildew-proof construction: The bonded aluminium skins repel water, making the panels a great choice for coastal areas, food processing businesses and pharmaceutical enterprises.
• Formaldehyde-free, odour-free, radiation-free composition: The panels are suitable for occupants in sensitive situations such as medical aesthetic centres and gyms, and have China’s Environmental Protection Standard Certification, ISO, and CE.
• High fabrication flexibility: The panels may be drilled, nailed, bent, and routed, allowing installers to wrap columns, work around curved facades, and build cassette-style tray systems without specialised apparatus.
• Sturdy and impact-resistant: ACP panels are shatter-resistant, unlike glass or ceramic tiles, therefore decreasing replacement costs over the building’s lifespan.





Because of these things, an Exterior ACP panel is a good long-term investment and not just a nice-looking addition. When buying materials for stadiums, art galleries, houses, or meeting centers, purchasing managers should choose a product that meets both regulatory and aesthetic standards.

Exterior Wall ACP Panel Installation: Step-by-Step Professional Guide

A quality installation can't last if the site isn't properly prepared. Before an anchor is driven into the wall, it must be checked for evenness, its ability to hold weight, and any signs of moisture. The rainscreen principle, which is used a lot in U.S. and European facade engineering, says that ACP panels should never be attached directly to concrete or brick. A sub-frame made of aluminum profiles or stainless steel tubes makes a space for air to flow behind the panel skin. This lets moisture escape and adapts to the yearly changes in temperature rise and fall.

The steps for installation make sense when you look at them in order:

• Mark and install anchor points at intervals specified by the structural engineer, accounting for wind load calculations for the building's height and location.
• Erect the sub-frame with verified plumb and level checks at every horizontal and vertical member; misalignment at this stage propagates across the entire facade.
• Route panel edges to the required return depth before lifting panels into position; pre-fabricating folds and cassette returns on the ground improves precision and reduces working-at-height risk.
• Fix panels to the frame using concealed rivets or mechanical clips that allow 2–3 mm of lateral thermal movement per linear meter of panel.
• Seal joints with a neutral-cure silicone sealant rated for exterior facade use; verify joint uniformity—ideally 8–12 mm—across every run before the sealant cures.

Once the panels are all put in place, you should do a thorough check for fire safety and insulation. If your local building rules say that rigid insulation boards or mineral wool must be used to fill the space behind the sub-frame, make sure that they are. Also, make sure that fire barriers are placed at each floor line to stop chimney-effect flame movement. This is required by NFPA 285 for buildings taller than 40 feet.

When fitting an exterior wall ACP panel, over-tightening screws is a common fitting mistake that you should try to avoid. This stops thermal movement and makes the panels buckle during summer heat cycles. Let the composite material breathe while it's being fixed.

Maintenance and Longevity: Ensuring Maximum Performance

The look of an ACP facade with a polyester paint top layer can be kept up with simple maintenance. Cleaning once a year with water and a neutral detergent (pH between 6 and 8) on soft microfiber cloths gets rid of atmospheric deposits without hurting the coating. As a result of alkaline cleaners and abrasive pads wearing down the paint surface and speeding up the chalking process, purchase specs should include a written upkeep routine that is given to facility managers when the project is finished.

During yearly checks, technicians should look for cracks in the sealant around the edges of panels, corrosion stains on the heads of rivets, and small deformations on the panel surface. Early repair of a single delaminated panel costs a small part of what it would cost to replace the whole piece. In places where there are strong freeze-thaw cycles, like the northern United States, panels fail faster when moisture builds up behind a broken seal. This is why fall inspections are so important.

Procurement Considerations for Exterior Wall ACP Panels

Evaluating Suppliers and Customization Capabilities

The choice of the Exterior ACP panel supplier determines the success of a large project (in terms of completion on schedule and within budget). When purchasing from wholesalers, purchasers should request verification that the materials are fireproof, have a peel strength of at least 7 N/mm (as needed by ASTM D1781) and a layer thickness of at least 25 microns (as required by AAMA 2605). If a supplier cannot deliver batch-consistent colour (Delta E below 0.8), then it will appear as varied colours on a finished facade, which will be costly to put right.

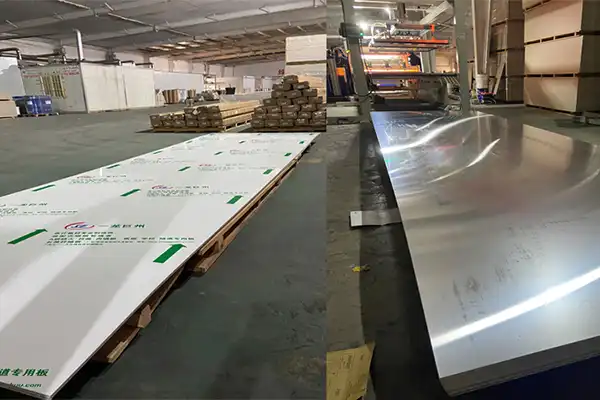

YILONG JUZHOU has two production locations in Foshan City, Guangdong Province and Xianyang High-tech Zone, Shaanxi Province. Together they have 50,000 m² of stock. Production lead time is three to seven days, and the company responds to technical queries in twenty-four hours. Panels are available in solid colours which correspond to the Pantone chart. Panels can be produced as OEM or ODM. Buyers can select their own sizes, finishes and packing. Exports to the United States and other markets in Asia, the Middle East and Africa leave from the ports of Shenzhen, Guangzhou, Shanghai or Qingdao.

Samples are free and usually available within 3 to 5 days. This allows buying teams to test the materials in real life before placing huge orders. The quality guarantee is valid for three years, providing institutional clients and overseas distributors working via phased project pipelines with contractual peace of mind.

Conclusion

Choose, install, and maintain your exterior wall ACP panel properly, and this material will last for decades and look wonderful on the outside of companies, hospitals, industries, and public buildings. This material is a suitable alternative for procurement professionals who need to combine regulatory compliance with lifetime cost, as it is resistant to fire and moisture and can be formed in a number of ways. If you buy materials from a manufacturer who can give you technical documentation, consistent quality, and fast after-sales assistance, then that purchase of materials can be an asset for a long time.

FAQ

Q1: Can ACP panels be installed directly over existing masonry walls?

No. A ventilated sub-frame is mandatory. Direct adhesion traps moisture, restricts thermal movement, and creates delamination risk within a few seasonal cycles.

Q2: What fire rating should I specify for a U.S. high-rise project?

Class A2 or B1 fire-rated panels with a mineral-filled core are required under NFPA 285 for exterior wall assemblies on buildings exceeding 40 feet. Confirm compliance with your local Authority Having Jurisdiction (AHJ).

Q3: How long do aluminum composite panels last in cold U.S. climates?

With proper installation and annual maintenance, a well-specified ACP facade lasts 20 to 25 years. Freeze-thaw resilience depends on correct joint sealing and the use of panels with adequate aluminum skin thickness—0.5 mm minimum for exterior applications.

Q4: Is customization available for non-standard panel dimensions?

Yes. Panels exceeding 3 meters in height are available, and both length and color can be customized to project specifications. OEM and ODM services are supported.

Partner with YILONG JUZHOU for Your Next Facade Project

YILONG JUZHOU offers approved, fire-resistant exterior wall ACP panels. These panels have ISO, CE, and China Environmental Protection certifications to back them up. We are a reliable ACP panel maker and seller with customers in over 30 countries. We offer OEM customization, quick samples in 3 to 5 days, and a quality guarantee that lasts for three years. You can email our technical team at cnyang2000114@gmail.com to get a quote that fits the needs of your project.

References

1. NFPA 285: Standard Fire Test Method for Evaluation of Fire Propagation Characteristics of Exterior Non-Load-Bearing Wall Assemblies, National Fire Protection Association, 2019.

2. EN 13501-1: Fire Classification of Construction Products and Building Elements, European Committee for Standardization, 2018.

3. AAMA 2605: Voluntary Specification, Performance Requirements and Test Procedures for Superior Performing Organic Coatings on Aluminum Extrusions and Panels, American Architectural Manufacturers Association, 2017.

4. Architectural Aluminum Manufacturer's Association Guide to Rainscreen Cladding Systems, AAMA, 2020.

5. ASTM D1781: Standard Test Method for Climbing Drum Peel for Adhesives, ASTM International, 2019.

6. Metal Construction News: Aluminum Composite Panel Performance in High-Rise Facade Applications, BNP Media, 2022.
