Ice fireproof board Installation Guide for Construction Projects

When managing a commercial construction or renovation project, choosing the right wall material directly affects safety compliance, project timelines, and long-term costs. This guide covers everything you need to know about ice fireproof board installation — from material properties and board selection to step-by-step fitting procedures and procurement advice. Whether you are specifying materials for a hospital corridor, a hotel lobby, or an industrial facility, this resource gives you the practical detail to move forward with confidence.

Send Inquiry

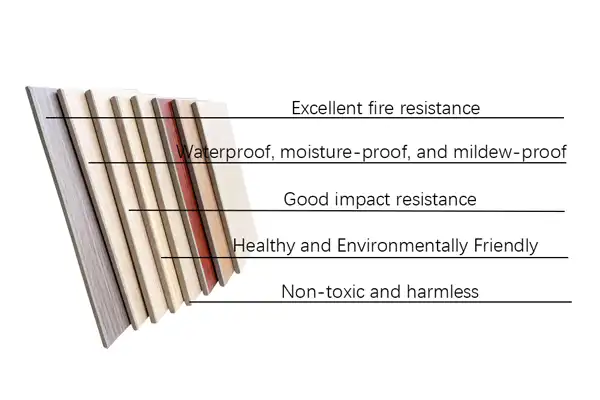

Understanding Ice Fireproof Board: Properties and Benefits

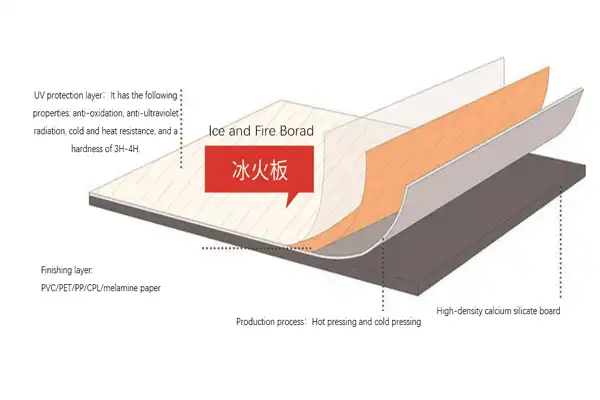

Ice fireproof board is a hybrid panel made from a calcium silicate base and an ornamental top layer. It comes in PVC, PET, PP, melamine paper, HPL, or CPL. The structure of the board gives it its unique ability to resist fire and look good.

Fire Resistance and Safety Certification

The board has a Class A fire rating, which means that it can't catch fire according to standard testing procedures for interior finishes, such as ASTM E84 approval for the U.S. market. In a fire, it won't help the flames spread like wood-based laminates or regular gypsum board would.

Moisture, Mold, and Impact Performance

The inorganic calcium silicate core stops water absorption below 10%. This keeps the core from twisting in damp places like hospital utility rooms, train stations, and business kitchens. The panel also has a high resistance to impact, which makes it less likely that walls in high-traffic areas will get dents and cracks. The surface is ≥3H hard, which means it can handle normal wear and tear well.

Environmental and Health Profile

There are no formaldehyde-releasing or benzene-releasing chemicals in the board. When UV light hits a surface, it forms a thick film that stops the substrate from off-gassing. This means that rooms are smell-free and ready to be used right away after installation. It is also certified by ISO and the China Environmental Protection Standard, which helps with formal tender processes that need compliance documentation.

Types of Ice Fireproof Boards and Their Application

Picking the right type of board is just as important as the placement method. The product line comes in 4.5, 5, 5.5, 6, 8, 10, 12, 14, and 15 mm sizes. The normal width is 1,220 mm, and for long wall runs, the length can go up to 3,050 mm.

Surface Finish Options by Project Type

Patterns on the surface can be plain color, woodgrain, marble, metal, or cloth. Marble-patterned and metallic finishes look great in hotel lobbies and high-end clubs that want the look of stone but can't afford or carry natural stone. For the inside of schools, businesses, and apartments, solid colors and wooden finishes work well.

Application by Building Category

Hospitals, clinics, schools, kindergartens, airports, train stops, subways, shopping malls, and homes all use the interior fireproof wall board all the time. Because it kills 99.99% of germs, it is a good choice for sterile settings. In industrial settings like tunnels, food processing plants, and drug factories, the main things that matter are how well the material resists moisture and mold.

OEM and Custom Sizing

OEM and ODM production are both available, so procurement teams can ask for custom panel sizes, surface patterns, or logos for big project quantities. This adaptability is especially helpful for builders who are doing phased construction on multiple sites and need to make sure that the materials used are the same everywhere.

Step-by-Step Installation Guide for Ice Fireproof Boards

The quick pressure strip installation system for these panels is designed to cut down on the time needed for work to be done on-site. Panels come already cut to size, so cutting isn't necessary, and assembly goes quickly, even on bare-wall surfaces.

Site Preparation and Framework Mounting

Make sure the wall substrate is dry, flat, and structurally sound before putting up the panels. Follow the structural drawings for your project to install a galvanized steel or aluminum framing system. Frame centers should line up with where the joints are on the panels. In order to keep the panels from not fitting right, make sure that all of the frame is level.

Cutting, Fitting, and Fixing Methods

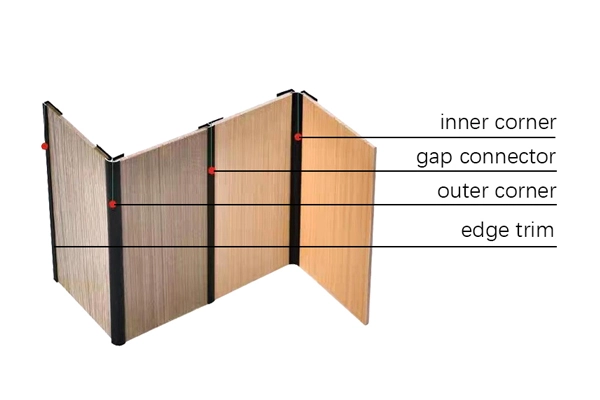

Score-and-snap is good for making straight cuts in panels that are 4.5 to 6 mm thick. A circle saw with a fine-tooth blade makes the edges of panels 8–15 mm thick cleaner. Using the pressure strip clip system, you can attach panels to the frame members. Neutral-cure structural adhesive mixed with mechanical clips forms a strong bond that can handle small changes in temperature where extra hold is needed, like around door frames and window reveals.

Joint Sealing and Final Inspection

At all panel joints, corners, and edges around the outside, use a neutral silicone lubricant that matches the color of the panels. This step isn't just for looks; it's also important for keeping the fireproof barrier intact across panel transitions. Once the seams are sealed, look and tap the whole fitted surface to find any open spots or loose clips before handing the area over.

Comparing Ice Fireproof Board With Other Fireproof Materials

Procurement teams can justify their choice of material during tender reviews or value engineering reviews by demonstrating how this panel stacks up against competing materials.

Factor	Ice Fireproof Board	Standard Gypsum Board	Cement Board	Mineral Wool Panel
Fire Rating	Class A	Class A	Class A	Class A
Antibacterial	99.99%	None	None	None
Water Resistance	High	Low	Medium	Medium
Surface Finish	Decorative	Plain	Plain	Plain
Installation Speed	Fast (clip system)	Moderate	Moderate	Slow

Weight and Structural Load

At 6 mm thick, calcium silicate panels are a lot lighter than cement board of the same thickness. This lowers the load on the secondary frame, which can make steel costs lower for business buildings with big wall installations.

Long-Term Cost Efficiency

The initial cost of the panels is higher than the cost of normal gypsum board, but the total cost of installation is lower because there are no different paint, tiling, or cladding layers. The UV-cured surface keeps its color without fading, so it doesn't need to be painted as often. This saves a lot of money over the life of a building, which is 10 to 15 years.

Certification and Compliance Documentation

Fireproof wall board is certified by CE, ISO, and the Chinese Environmental Protection Agency. Compliance with ASTM E84 helps get projects approved in the U.S. Having third-party test results and material safety data sheets ready cuts down on the time it takes to evaluate bids and the amount of back-and-forth with project engineers.

Procurement Guide for Ice Fireproof Boards in Construction Projects

When buying these panels for a large job, you need to pay attention to production wait times, logistics, and the supplier's ability to help you.

Production Lead Time and Stock Availability

Yilong Juzhouu keeps 50,000 m² of ready stock in two production bases, one in Foshan (Guangdong) and the other in Xianyang (Shaanxi). Custom requests usually take between 3 and 7 days to be made. Within 24 hours of receiving an inquiry, a response is given, which helps procurement cycles move quickly on phased construction projects.

Logistics and Port Options

Ships going out of the country go through the seaports in Shenzhen, Guangzhou, Shanghai, or Qingdao. You can get there by land through Xi'an, Guangzhou, Shenzhen, and Foshan. This multiple port access makes shipping times more stable for buyers from other countries and gives dealers more options for getting containers to their regional stores.

Warranty, Samples, and Technical Support

YILONG JUZHOU guarantees the quality of all panels for three years. It takes 3–5 days for free samples to arrive, so procurement teams and architects have time to test and approve the materials before placing a full order. Technical support includes help with installation and fixing problems after installation. This is especially helpful for people who are using the clip-based installation method for the first time.

Conclusion

Ice fireproof board is useful because it is fireproof, long-lasting, antibacterial, and easy to design. Other wall materials can't do all of these things in one product. The information covers real compliance and performance needs in all business building sectors, from hospitals and schools to high-end hotels and factories. The structured fitting method cuts down on work costs, and the low-maintenance surface makes interior finishes last at least ten years longer. If procurement teams are looking at fireproof interior wall options, this panel is a good choice because of its technical profile and structure for supporting suppliers.

FAQ

1. How long does a standard installation take?

For a crew experienced with clip-based panel systems, a 100 m² wall area typically takes one to two working days, including framework mounting, panel fitting, and joint sealing.

2. Are these boards suitable for humid environments?

Yes. The calcium silicate core keeps water absorption below 10%, and the surface layer resists mold growth. This makes the panels appropriate for bathrooms, hospital utility areas, commercial kitchens, and subway stations.

3. What certifications should I verify before purchasing?

Confirm that the supplier holds Class A fire rating documentation, CE certification, ISO certification, and environmental compliance records. For U.S. projects, request ASTM E84 test reports specifically.

4. Can panels be customized for non-standard wall dimensions?

Yes. OEM and ODM production is accepted. Panels can be produced in custom dimensions up to 1,220 × 3,050 mm, and surface patterns can be specified to match a project's design requirements.

5. What is the minimum order quantity for export?

Minimum order quantities vary by surface finish and thickness. Contact YILONG JUZHOU directly at cnyang2000114@gmail.com to receive a project-specific quote based on your volume and delivery schedule.

Request a Quote from YILONG JUZHOU — Trusted Ice Fireproof Board Manufacturer

YILONG JUZHOU makes certified ice fireproof board wall panels and guarantees their quality for three years. They keep 50,000 m² of them in stock and can respond to customers 24 hours a day. It takes 3–5 days to ship free samples. Our technical team is ready to help you whether you need standard panels or OEM panels that are made just for you. You can email us at cnyang2000114@gmail.com to get samples, look at technical data sheets, or start the project inquiry process right away.

References

1. STM International. ASTM E84: Standard Test Method for Surface Burning Characteristics of Building Materials. ASTM International, 2023.

2. National Fire Protection Association. NFPA 101: Life Safety Code. NFPA, 2021.

3. European Committee for Standardization. EN 13501-1: Fire Classification of Construction Products and Building Elements. CEN, 2018.

4. International Organization for Standardization. ISO 14001: Environmental Management Systems — Requirements with Guidance for Use. ISO, 2015.

5. U.S. Green Building Council. LEED v4.1 Building Design and Construction Reference Guide. USGBC, 2022.

6. Construction Specifier Magazine. Specifying Fire-Resistant Interior Wall Systems for Commercial Projects. The Construction Specifier, 2022.
