Painting Aluminum Composite Panel: A Step-by-Step Guide

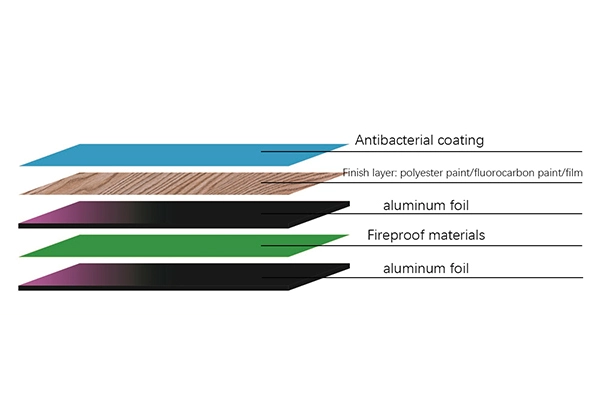

A painting aluminum composite panel is a sandwich-structured wall material composed of a fire-retardant mineral core bonded between two aluminum skins, finished with a factory-applied polyester or fluorocarbon coating. Unlike raw or post-painted panels, this pre-finished system delivers consistent color, superior adhesion, and verified performance straight from production. Architects, procurement teams, and facility managers across hospitals, airports, hotels, and office buildings rely on it because it combines design flexibility with measurable safety compliance — all in a single, installation-ready product.

Send Inquiry

Understanding Aluminum Composite Panel Painting: Basics and Benefits

What Sets Painted ACPs Apart from Unpainted Panels

When exposed to humidity or cleaning chemicals, raw aluminum walls rust very fast. A polyester paint coating that is applied at the factory makes a barrier that keeps out water, mold, and surface wear without adding a lot of weight. According to ASTM D3359, a layer that has been properly dried passes cross-hatch adhesion tests with no paint coming off. This confirms the bond strength that field-applied paints rarely reach.

Paint Types and Their Performance Trade-Offs

There are two main coating methods used to make industrial ACP. Polyester (PE) paint works well inside places like schools, clinics, conference centers, and hotel lobbies, and it has been shown to last 5–10 years before it starts to fade. PVDF (fluorocarbon) coatings are governed by AAMA 2605 and come with 15–20-year warranties for exterior walls. This is because the carbon-fluorine molecular bond doesn't break down in UV light at the molecular level. PE-coated panels are a good choice for most indoor decorating jobs because they offer good value without the higher cost of fluorocarbon systems.

Painted ACPs also fill in a practical gap that buying teams often face: color differences between batches. The Delta E (ΔE) number stays below 0.8 with factory coil-coating, which means that panels from different production runs look the same on a finished wall. This is a standard that can't be met by spray painting by hand.

Step-by-Step Guide: How to Paint Aluminum Composite Panels

From Traditional Spray Booths to Continuous Coil Coating

In the beginning, aluminum composite board ACP was made by spraying it by hand, which led to uneven film thickness and big color differences between batches. A roll-to-roll reverse coil-coating line that is automatic is now used in modern buildings. A chromate conversion layer, primer application, top-coat application, and a drying oven are all things that the aluminum coil goes through in a single continuous pass. This stops mistakes made by people and keeps the coating's thickness between 25 and 35 microns, which is the right range for solid corrosion protection.

The sequential steps in a quality coil-coating process are:

• Surface degreasing and etching: get rid of mill oils and make the microsurface rough, which holds the primer in place chemically instead of mechanically.
• Chromate conversion coating adds a thin layer that makes rust resistance much better; the MEK rub test (100+ double rubs without metal contact) checks the quality of curing at this stage.
• Primer coat application: A 5–8-micron epoxy primer holds the conversion layer to the finish and can withstand T-bend tests at 2T without cracking.
• Topcoat application (PE or PVDF): It is spread out between 18 and 25 microns thick. The gloss level, color, and finish are locked here against a Pantone reference.
• Curing oven: Panels dry in a controlled-temperature oven, and ASTM D3363 pencil hardness testing makes sure the surface is H to 2H hard before the coil is wound again.

All of these steps get rid of the problems with bonding, cracking, and peeling that happen with factory panels that were painted in the field or that aren't made well. After the covering system is made, it is put through an ASTM B117 salt spray fog test, which is usually left to run for 3,000 to 4,000 hours. This makes sure that it can withstand filiform rust in harsh conditions.

Making Informed Decisions: Choosing the Right Paint and Supplier

PE vs. PVDF: Matching Coating to Application

PE-coated panels are mostly used to decorate the walls of hospitals, subways, gyms, and art galleries. The layer doesn't contain any formaldehyde, smell bad, or give off radiation. This makes it compatible with green building material standards and health-sensitive purchasing rules. When panels are exposed to full sunlight on the outside of a building or salt spray from the sea, PVDF becomes the better choice. This is because its resistance to chalking and 15-year gloss retention make up for the higher cost.

Supplier Evaluation Criteria That Protect Procurement Teams

Picking a finishing method is only half the choice. The qualification of the supplier decides whether promises made about specifications are met by the product that is provided. The things that constantly set reliable suppliers apart are:

• Third-party certifications, such as ISO, CE, and China Environmental Protection Standard Certification, show that the safety of the industrial systems and materials meets standards that have been checked by a third party.
• Customization depth: Genuine OEM and ODM capabilities mean that the provider can match any Pantone solid color, make widths of 1220 mm, 1500 mm, or 2000 mm, and cut custom lengths, even for panels that are more than 3 meters tall.
• Technical documentation: Every order should come with technical paperwork like colorimeter reports (ΔE values), adhesion test results, and fire classification certificates (Class A2 or B1).
• Lead time transparency: A production cycle of 3–7 days and a confirmed stock of 50,000 m² keep phased building projects from falling behind schedule.





When procurement teams use these factors to choose suppliers, the chance of expensive failures on-site goes down a lot.

Procurement Guide: Sourcing Painted Aluminum Composite Panels Efficiently

Ordering, Customization, and Cost Drivers

Direct communication with the manufacturer for painting ACP panels always leads to more accurate prices and specifications than going through a selling company. When you contact a manufacturer, you should include a project brief that lists the thickness (2 mm, 3 mm, 4 mm, 5 mm, or 6 mm), aluminum skin thickness (0.1 to 0.5 mm), surface finish, fire classification, and the environment where the product will be used. By asking for a physical sample before committing to a large order, the procurement and design teams can make sure that the color and surface quality match up with what will be used on the project.

Panel width, aluminum skin gauge, coating type, and order number are all cost drivers that you should know about before you negotiate. When you buy in bulk under a long-term supply deal, the cost per unit usually goes down, and you get priority production slots, which is a big plus for developers who are in charge of handling multiple stages of a project.

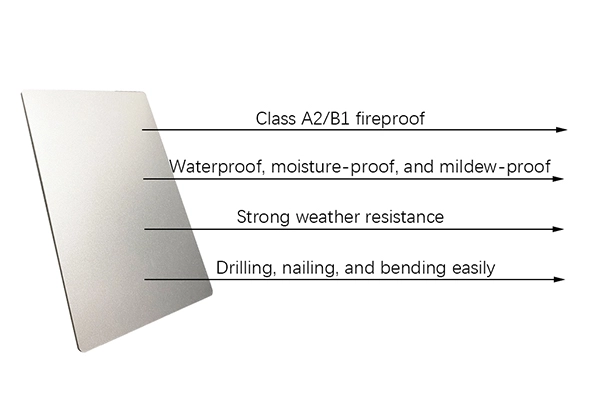

Putting these panels up doesn't take any special skills. The light composite structure allows for drilling, nailing, and bending to be done on-site, and the surface is already finished, so there is no need to paint after installation.

Common Challenges and Solutions in Painting Aluminum Composite Panels

Diagnosing and Preventing Coating Failures

The most common problems with painted aluminum panels that are reported in the field are these four:

• Peeling and delamination are mostly caused by not using enough chemicals before the finish. This risk can be eliminated by checking the cross-hatch bonding test result before shipping.
• Blistering happens when there is still some moisture under the primer after it has dried. This doesn't happen when the humidity in the factory is controlled during the coating process.
• Chalking is a sign that a PE covering is breaking down due to UV light when it is exposed to direct sunlight outside. To fix this, mention PVDF for outdoor uses from the start instead of re-coating in the field.
• Discoloration between panels means that the batch ΔE value is above 0.8. This is found before installation by requiring colorimeter reports for each batch during the arrival inspection.

A project to build a food processing plant is a good example of effective risk management. The buying team chose panels with a Class B1 fire rating, an antibacterial PE layer, and a moisture-proof core. They then used adhesive and salt spray test certificates to make sure each shipment was safe. With daily chemical cleaning processes, there were no coating problems in 18 months of use.

Conclusion

Painting aluminum composite panels gives them measured performance benefits like a uniform color, proven adhesion, fire safety, and a surface free of formaldehyde that other options can't match. The step-by-step factory coil-coating process gets rid of the factors that can lead to long-term coating failures. These panels can be used in hospitals, airports, stadiums, hotels, and factories because they can be customized in terms of thickness, width, color, and length. When purchasing things based on checking certifications, choosing the right coating type, and making sure the seller is qualified ensures the installations always look good and stay strong for a long time after regular repair rounds are over.

FAQ

1. How long does a polyester-painted ACP surface last indoors?

PE-coated panels used inside places like offices, clinics, and hotel lobbies will keep their shine and color for 5 to 10 years if they are cleaned properly. The finishing surface lasts a lot longer when you use neutral soaps (pH 6–8) and soft cloths.

2. Can these panels be customized for non-standard project dimensions?

Yes. Panels come in 2, 3, 4, 5, and 6 mm thick options, as well as 1220, 1500, and 2000 mm wide options, and lengths that can be changed to fit any need. It is possible to make heights higher than 3 meters, which allows for long wall spans that don't break in airports, train stations, and stadiums.

3. Are these panels safe for healthcare environments?

The polyester coating doesn't contain any formaldehyde, smell bad, or give off radiation, so it meets the standards for environmentally friendly building materials. The core doesn't absorb water or mildew, so it meets the cleanliness standards of hospitals and medical beauty centers.

4. What fire classifications are available?

There are fire-rated panels that meet the standards of most commercial building codes in the US and around the world. These meet Class A2 and Class B1 standards.
